10KVA Solar Inverter Board (AAA+ Quality)

⚡ Sidhu Electronics 10KVA Solar Inverter Board (AAA+ Quality)

Model: PTC-10K-SL | 12 × 60N60 IGBTs | 8 × 820µF / 450V Capacitors | Dual-Side Heatsink

Product Overview:

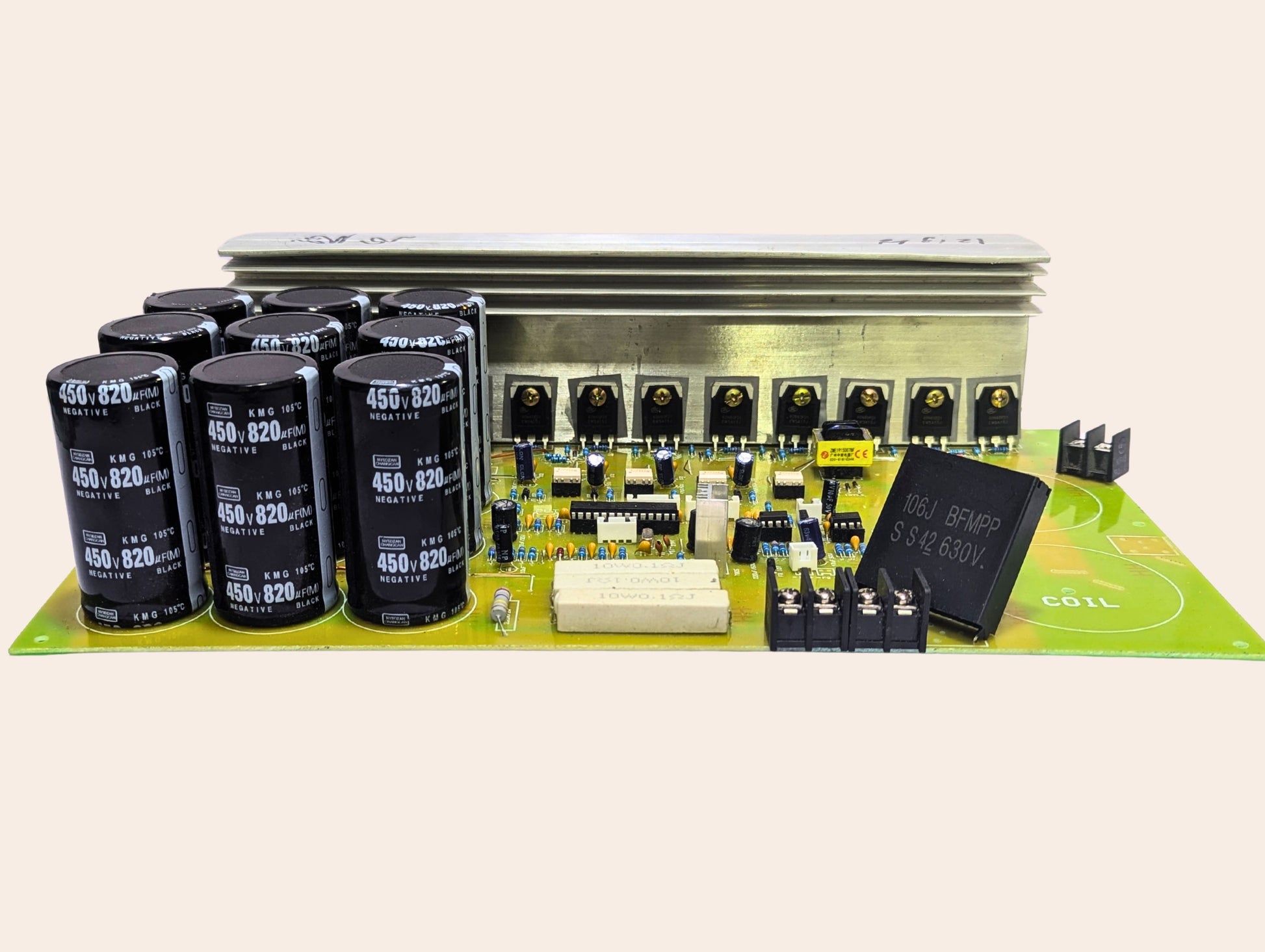

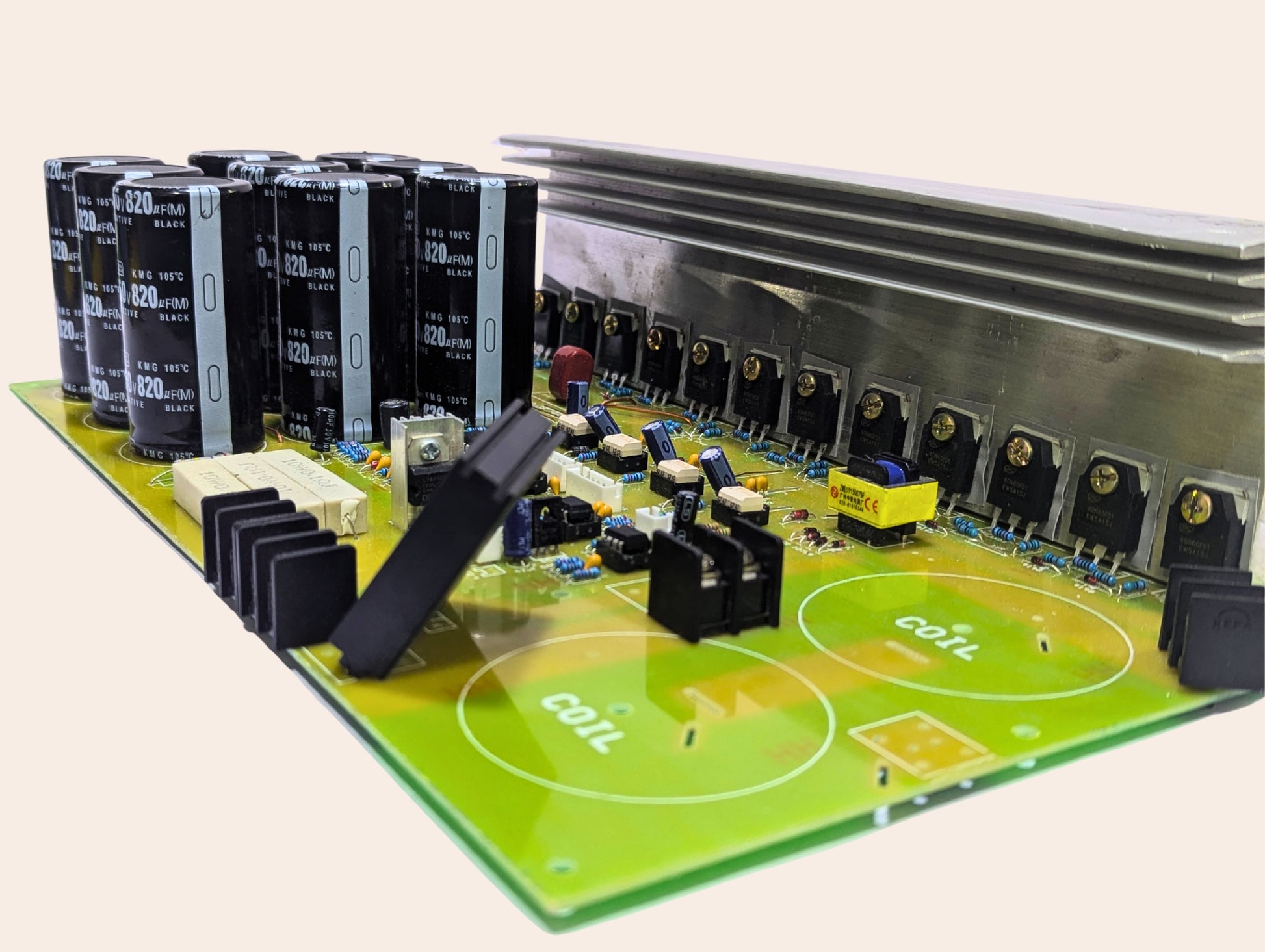

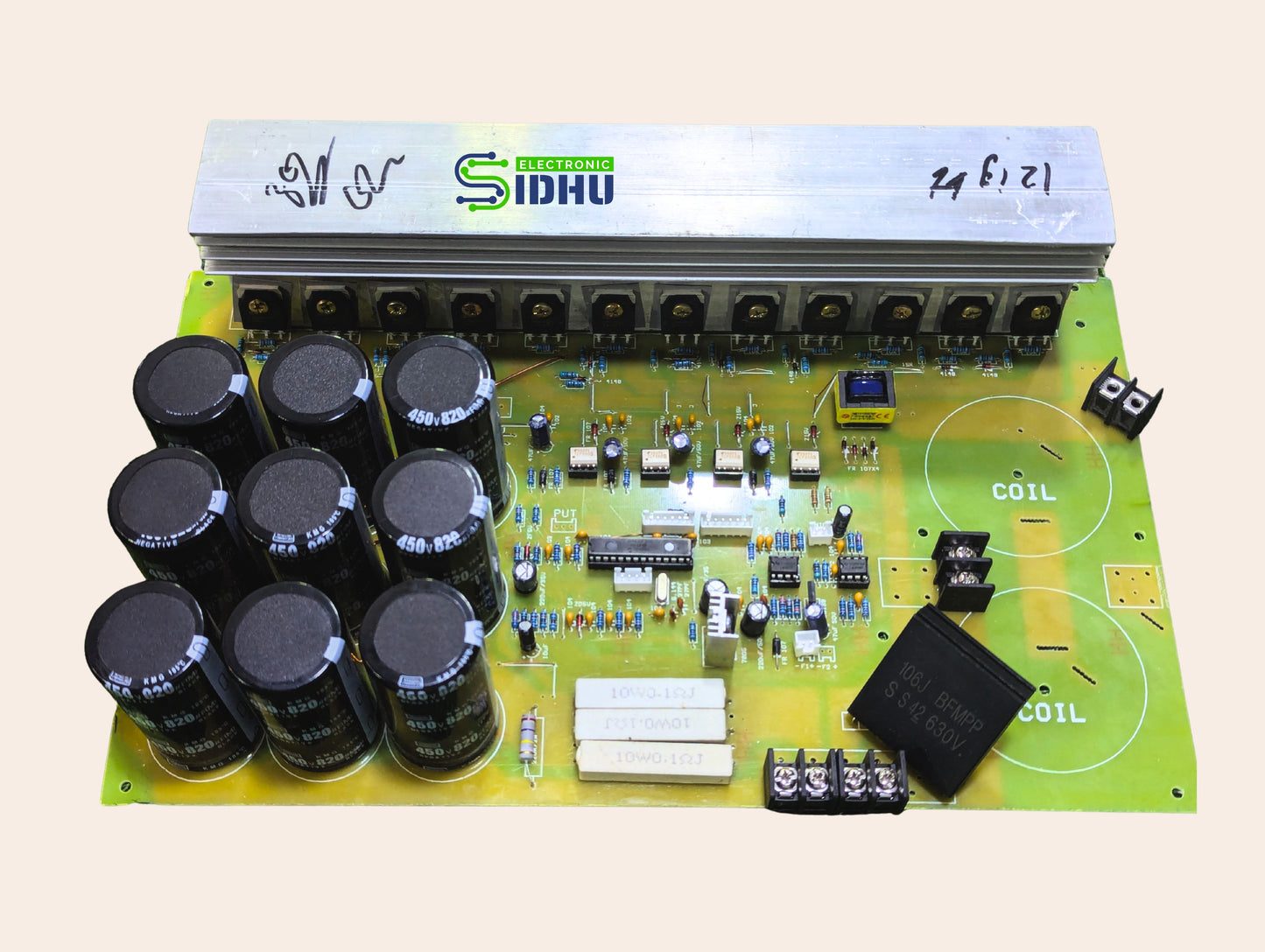

The Sidhu Electronics 10KVA Solar Inverter Board is a heavy-duty inverter control board, engineered for high-power solar and battery inverter applications. Built with 12 high-grade 60N60 SL IGBTs, this board is capable of delivering stable 220V AC output from a 250V–400V DC input, ideal for powering large household loads or small industrial systems. A double-sided heatsink design ensures exceptional thermal performance under continuous load.

🔧 Technical Specifications:

• Power Rating: 10KVA

• Input Voltage Range: 250V – 400V DC

• Output Voltage: 220V AC (Pure/Modified Sine Wave – based on configuration)

• Switching Devices: 12 × 60N60 SL IGBTs – robust and thermally efficient

• Capacitors: 8 × 820µF / 450V electrolytic capacitors – total filtering capacity of 6560µF for superior DC smoothing

• Cooling System:

  • Double-Sided Aluminum Heatsink – advanced heat dissipation

  • Supports forced-air cooling for high-load conditions

• Control Power: Onboard 400V DC to 15V DC converter for logic power

• Display Support: Compatible with 1602 LCD for live monitoring

• PV Side Protection: Diodes included for reverse polarity and backfeed protection

• Backside Capri Components: Efficient layout with components distributed for space-saving and better airflow

• User Interface: 3-button control input for menu and status navigation

✅ Key Benefits:

• ✅ High Capacity 10KVA Output – ideal for large home or commercial solar inverters

• ✅ 12 IGBTs (60N60 SL) – enhanced switching control and reliability

• ✅ Massive Filtering (6560µF) – ripple-free, stable DC input

• ✅ Double Heatsink Architecture – superior heat management for continuous high-power use

• ✅ Built-in Power Regulation – self-powered logic, no external 15V adapter needed

• ✅ Reverse Protection & Safety Components – diode-protected PV inputs

• ✅ Modular, Compact Design – optimized for assembly and integration

• ✅ Compatible with Inductor Coil – supports clean sine wave output shaping
