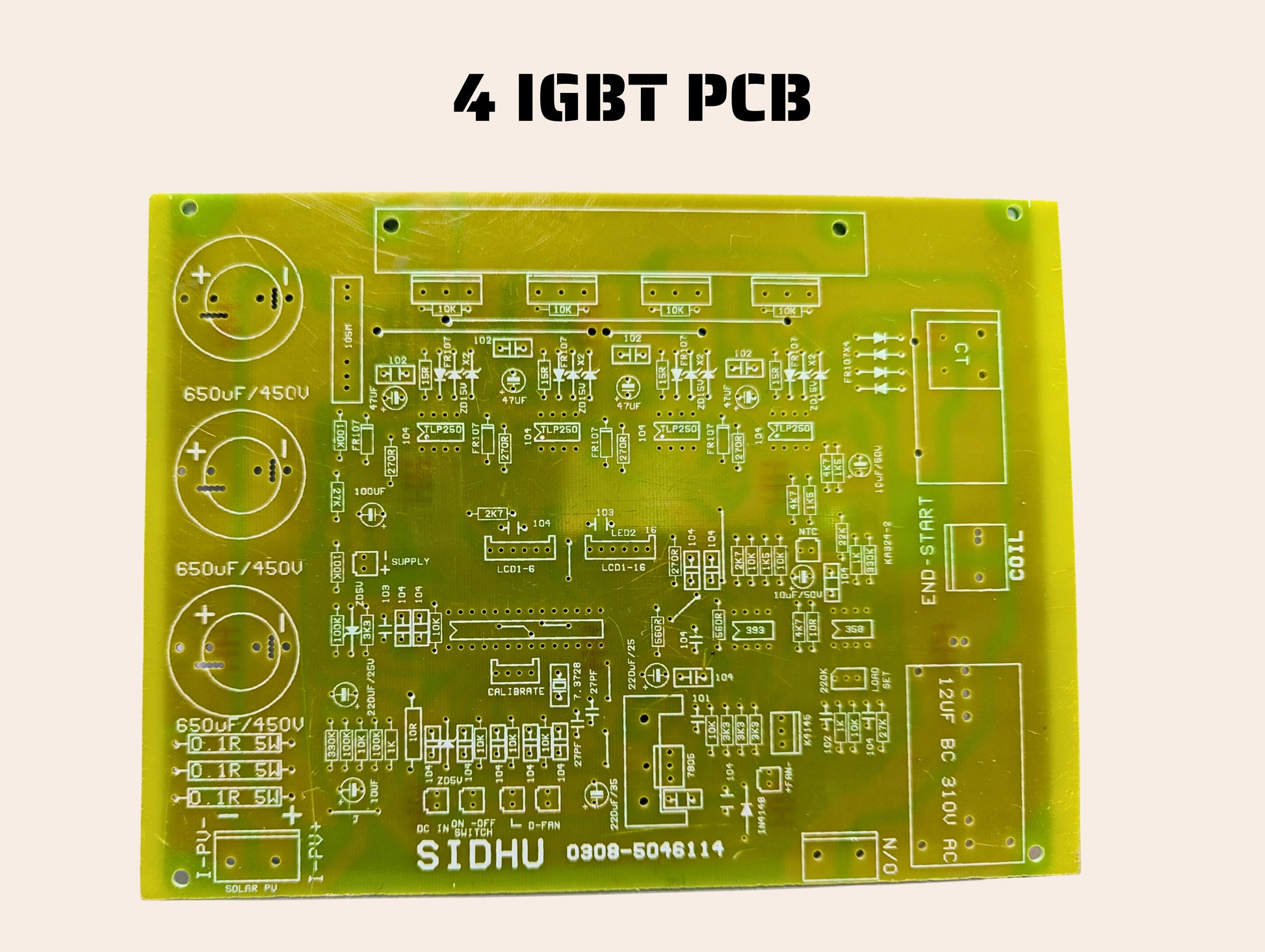

4-Channel IGBT Driver PCB – Compact Control Board by Sidhu Electronics

This 4 IGBT PCB from Sidhu Electronics is a compact and efficient layout for low-to-medium power control systems. Ideal for smaller solar inverters, UPS systems, or motor control units, it includes capacitor placements, NTC input, and precise labeling for streamlined assembly. The design focuses on thermal and electrical stability, ensuring safe and reliable performance.

Key Features:

• Supports 4 IGBT modules

• 650uF/450V capacitor placements

• Coil and sensor inputs (NTC, CT, etc.)

• Ready for LCD display and auxiliary fan control integration

• Ideal for compact solar, UPS, or automation projects

• Sidhu Electronics quality assurance
