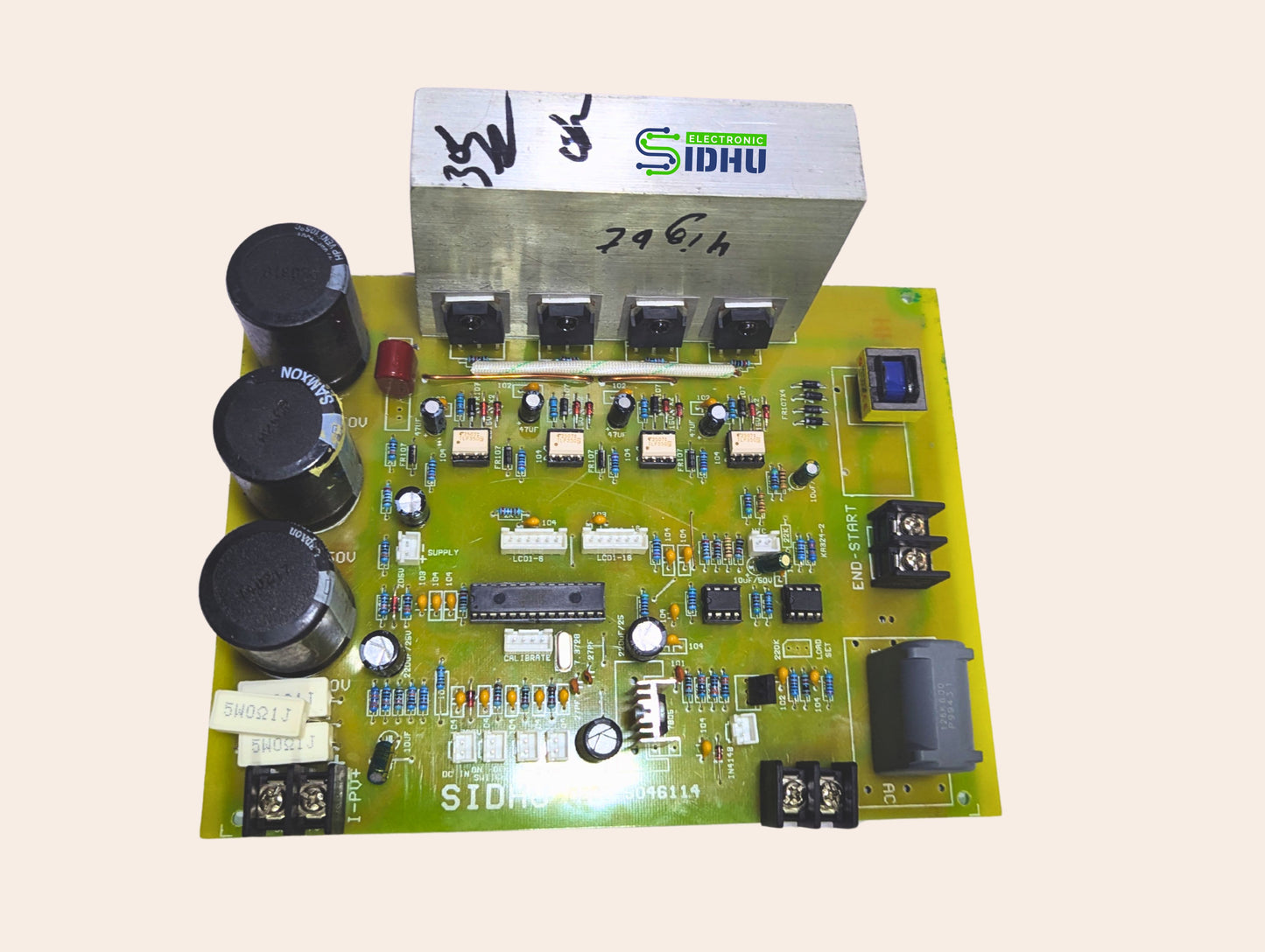

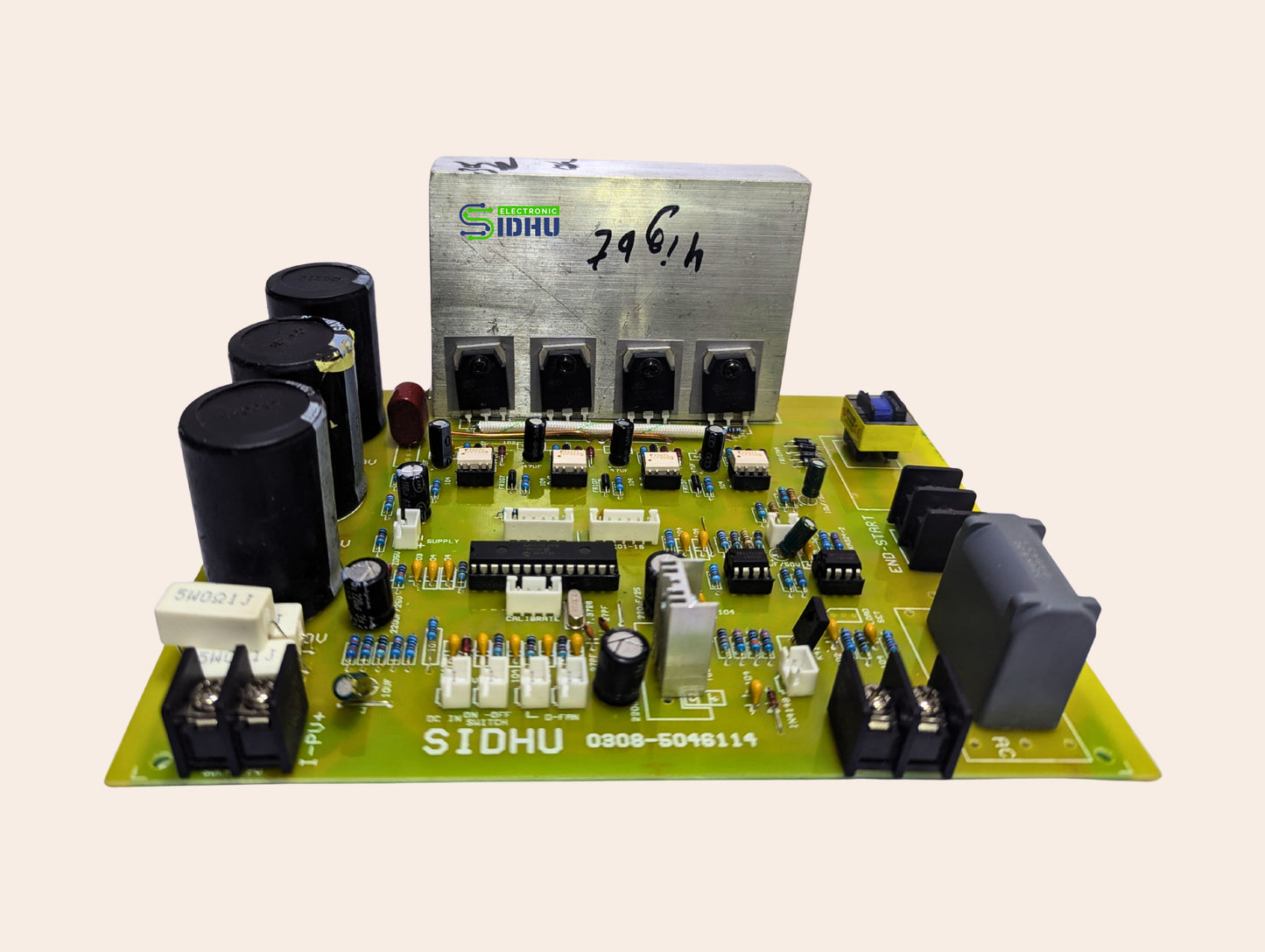

5KVA Inverter Board (A+ Quality) 4x60n60 SL IGBT (3X470UF/450V)

⚡ Sidhu Electronics 5KVA Inverter Driver Board (A+ Quality)

Model: PTC-5K-A+ | 4 × 60N60 IGBT | 3 × 470µF / 450V Capacitors

Product Overview:

The Sidhu Electronics 5KVA Solar Inverter Board is a compact and cost-effective inverter driver/control board built with A+ grade components, ideal for medium-load solar power systems and battery backup inverters. It efficiently converts 250V–400V DC into 220V AC, supporting smooth operation of household or light commercial appliances.

🔧 Technical Specifications:

• Power Rating: 5KVA

• Input Voltage: 250V – 400V DC

• Output Voltage: 220V AC

• Switching Devices: 4 × 60N60 IGBTs – high-speed, thermally stable switching

• Capacitors: 3 × 470µF / 450V electrolytic capacitors – stable DC filtering

• Display Module: Compatible with 1602 LCD display (optional)

• Power Supply: Onboard 400V to 15V DC converter to power logic/control section

• Cooling: Integrated heat sink for effective thermal dissipation

• User Interface: Supports 3-button navigation for control menus and settings

✅ Key Benefits:

• ✅ Reliable A+ Grade Components – Affordable without compromising performance

• ✅ Efficient 4-IGBT Switching System – Ideal for medium-duty inverter systems

• ✅ Filtered Power Output – 3 x 470µF capacitors minimize voltage ripple

• ✅ PV Input Diode Protection – Safe integration with solar panels

• ✅ Integrated Power Supply – No need for an external 15V source

• ✅ Compact and Modular Design – Easy to integrate and maintain

• ✅ Backside Capri Mounting – Streamlined PCB layout for better airflow
