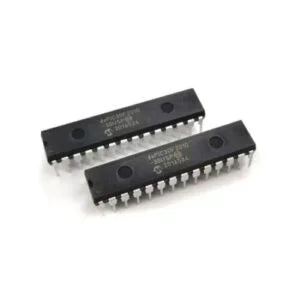

Microchip dsPIC30F2010 Digital Signal Controller (DSC) – Inverter Control IC

The dsPIC30F2010 from Microchip Technology is a high-performance Digital Signal Controller (DSC) designed for real-time motor control, power conversion, and inverter applications. It combines the processing power of a DSP with the simplicity of a microcontroller, making it ideal for controlling inverters, UPS systems, SMPS, and motor drives.

Key Features:

• 30 MIPS dsPIC® DSC core with DSP-enhanced 16-bit MCU

• Operating speed up to 30 MIPS @ 30 MHz

• 24 KB Flash program memory, 2 KB RAM

• High-performance PWM module (ideal for sine wave inverter generation)

• 12-bit ADC with fast sampling for real-time monitoring

• UART, SPI, I²C communication interfaces

• Wide operating voltage range: 2.5V – 5.5V

• Industrial-grade performance and reliability

Applications:

• Pure sine wave inverters

• Solar inverters & MPPT controllers

• Uninterruptible Power Supplies (UPS)

• Motor control (BLDC, PMSM, AC induction motors)

• Switched-mode power supplies (SMPS)

• General-purpose digital signal processing
